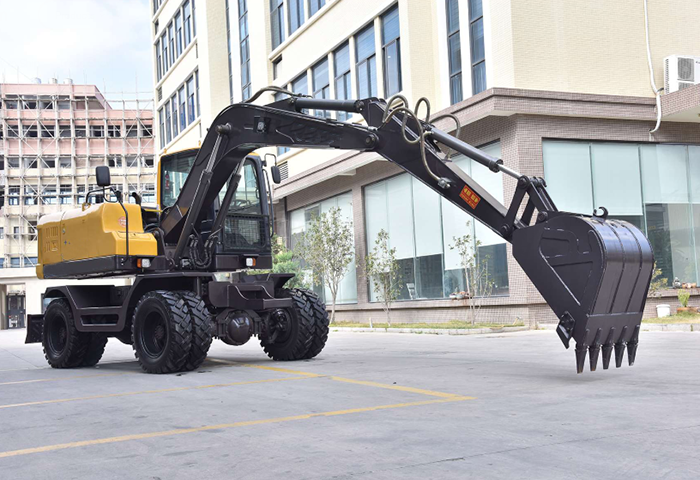

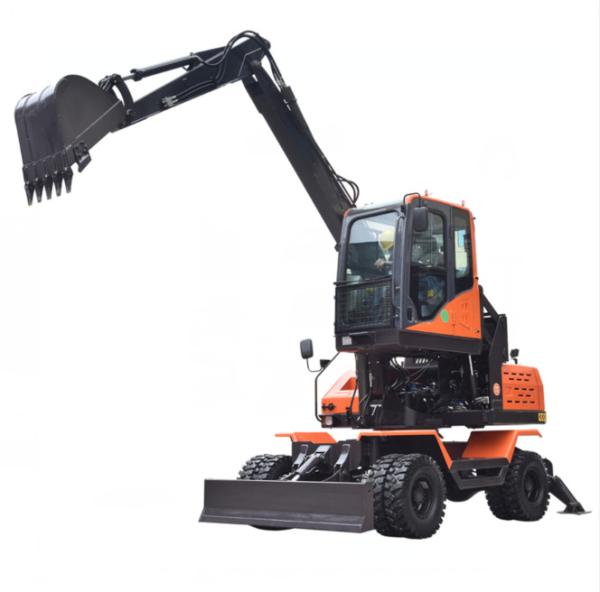

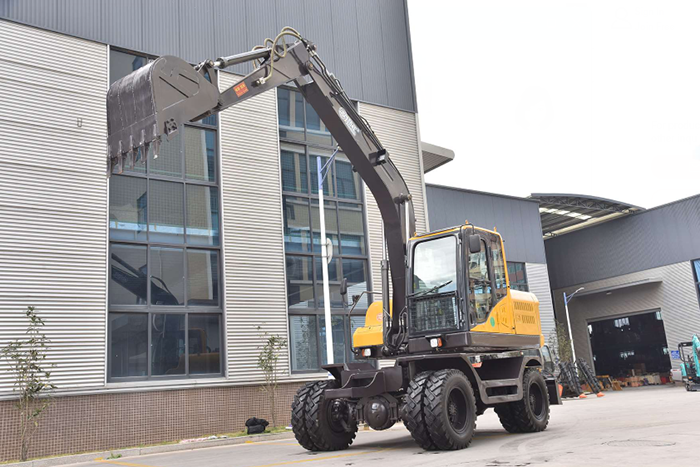

9 Ton 0.35CBM Bucket Road Builder Excavator Digger Machine

Name: 9 Ton 035CBM Bucket Road Builder Excavator Digger Machine
Brand: Bilon
Price: 1 USD

9 Ton 0.35CBM Bucket Road Builder Excavator Digger Machine Manufactures

Brand Name : Bilon

Certification : CE

Place of Origin : China

MOQ : 1-5 pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 sets for one month

Delivery Time : 30 days

Packaging Details : Iron frame or customised wooden package for excavator

Operating Weight : 8600kg

Bucket capacity : 0.35CBM

Maximum Digging : 4650-5100mm

Maximum Digging Depth : 4500mm

Rated Speed : 23km/h

Rated Power : 62.5KW

Contact Now

9 Ton 0.35CBM Bucket Excavator Digger Machine China Manufactured

1,provides comprehensive and mature techniques. Undercutting is frequently performed as an independent

service for cleaning stretches of track.

2,It is also deployed as part of larger maintenance of way and environmental projects.
3,This mini crawler excavator specifically designed for use off-track cutting ballast, is a revolutionary system

designed to undercut track without wasting valuable track time. scoops out contaminated gravel and

mud and fouled ballast from beneath railroad tracks.

RANGE OF OPERATION	Boom length	3670mm
	Arm length	1860mm-2650mm
	Maximum Dumoing height	4650-5100mm
	Back-End radius of gyration	198mm
	Max lifting height of cab	800mm
	Max extended distance of arm	800mm
DIMENSION	(Lengthwidthheight) travel position	645022303050mm
	Wheel base	2430mm
	Track(Front/rear)	1850mm/1750mm
	Ground clearance of counterweight	1060mm
	Min ground clearance	200mm
TECHNICAL PARAMETERS	Angle of rotation	360°
	Machine weight	8600kg
	Engine model	YUCHAI
	Rated Power	62.5KW
	Rated Speed	2200r/min
	Hydraulic system working pressure	24Mpa
	Hydraulic system flow	150L/min
	Metering gear pump	2*36ml/r
	Max Hauling force	50KN
	Walking speed	23km/h
	Grade Climbing ability	58%/30°
	Tyre model	825.20
	Volume Of Bucket	0.35m³
	Revolution Overdrive Pressure	20Mpa
	Full circle swinging time	5.5s
	Fqt Fuel Quantity	≥6L/h
	Capacity Of The Fuel Tank	110L
	Hydraulic Tank Capacity	110L

9 Ton 0.35CBM Bucket Road Builder Excavator Digger Machine
